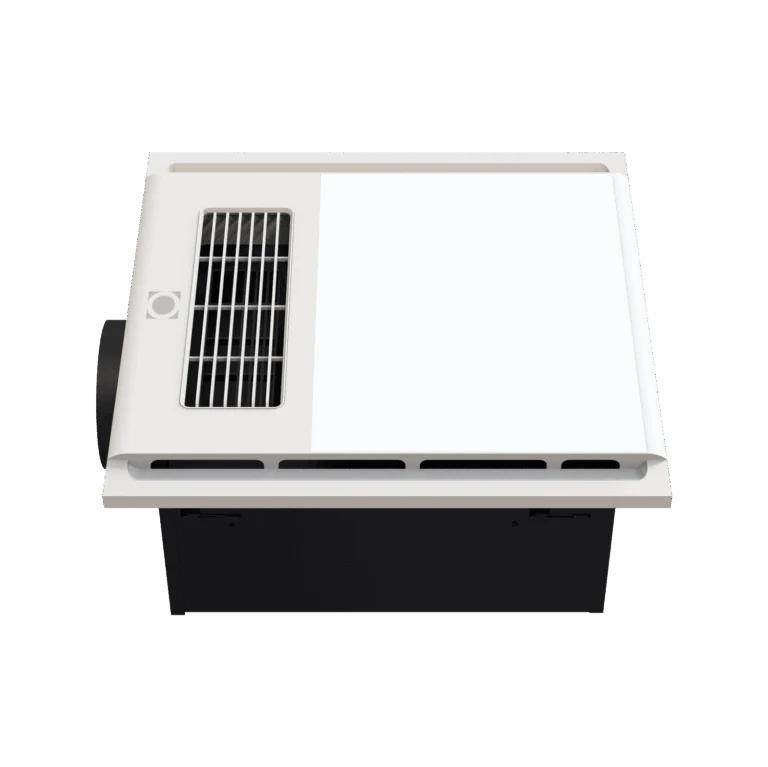

Heatcore 4 In 1 Heat, Light, Exhaust and Fan White

The HEATCORE 4-In-1 Retrofit Line Bathroom Heater offers a modern flush-like appearance, designed to replace previously installed 3-In-1 Infrared models. Suitable for most contemporary bathroom designs, combined with the latest technology in PTC bathroom heater models.



Data Sheet

Finish:

• White

Features:

• Exhaust/Heater/Circulation Fan and CCT Light in 1 Unit

• 60W AC Motor

• PTC Heating Element

• Digital Wall Controller

• Automatic shut-off after 2 hours of continuous use


• 3m Flexible Duct Included

Air Extraction:

• 300m³/h

Noise Level:

• <46dB(A)

Motor Wattage:

• 60w

Light Information:

• 12W Built-In LED

• Changeable Tri-Colour CCT

Lumen Output:

• 3000K (Warm White) - 850lm

• 4000K (Cool White) - 950lm

• 5000K (Daylight) - 900lm

IP Rating:

• IPX2 (What is this?)

Dimensions:

• Cut-Out: 330mm x 350mm

• Height: 158mm (Minimum Height Clearance: 200mm)

• Fascia: 390mm x 390mm

• Duct outlet size: 100mm

Warranty:

• 5 Year In-Home Warranty
