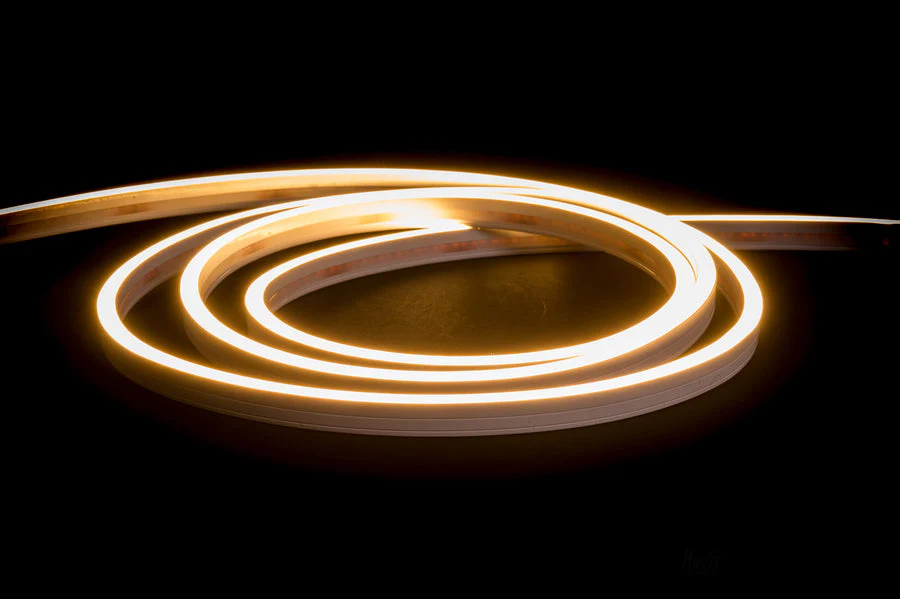

14.4w 3000K 140LED HAVIFLEX 6.5mm x 11mm - IP67 / 20 Metre Roll

Data Sheet

Finish:

• Clear Silicone Strip

For a clean, diffused finish, many people opt to install the LED strip inside extrusion.

Globe Type:

• Built in LED 2216 Chip Type

Wattage:

• 14.4W per metre

Lumens:

• 660lm per metre

Colour Temperature:

• 3000K - Warm White

Dimmable:

• Yes, with dimmable driver

Remote:

• Sold separately

Beam Angle:

• 120°

Voltage:

• 24v DC (Driver and other control gear sold separately)

IP Rating:

• IP67

Dimensions:

• Length: 20,000mm

Please Note: cuttable at 50mm intervals

• Width: 6.5mm

• Height: 11mm

Additional Information:

• Max Cut Length: 5000mm

• Supplied with 4x mounting clips per metre

• Side bend only

• To avoid breakages, do not step on, twist in wrong direction or stretch the product as per installation instructions

Warranty:

• 3 Year Warranty

• All LED strip must be installed on an aluminium heat sink, failure to do so WILL VOID WARRANTY

• When installed in an outdoor environment, Aluminium Channel cannot be used due to expansion which could possibly cause Haviflex to break. If channel is required, HV9792-PVC-CHANNEL (PVC) must be used to avoid any damage to Haviflex.
